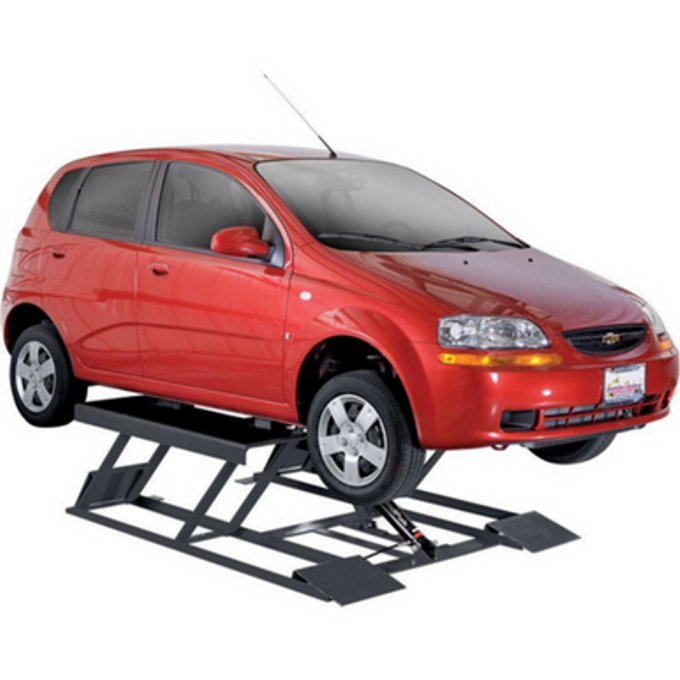

BendPak LR-60 – 6,000 lb Low-Rise Scissor Lift
The BendPak LR-60 is a robust 6,000 lb low-rise scissor lift engineered to speed up tire, brake, and quick service jobs without taking over your entire bay. With a low 4″ collapsed height, compact footprint, and electric/hydraulic power system, it delivers serious capability for both professional shops and serious home garages that want more than jacks and stands.
Low-Rise Design for Fast Wheel & Brake Service
This rubber-topped low-rise pad lift is built for quick access to wheels, brakes, and suspension while keeping the vehicle at a comfortable working height. Drive onto the wide platforms, position the included rubber blocks at the correct lifting points, and raise the vehicle for fast, efficient service.
- Ideal for tire, brake, and suspension work on passenger cars and light trucks within rating.
- Excellent for quick inspections, oil changes, and undercar detailing.
- Low-rise layout keeps the bay open and easy to move around.
- Great upgrade for home garages that want pro-style capability in limited space.
Low Collapsed Height & Strong Lifting Range
A low collapsed height of about 4″ helps the LR-60 accommodate many lower vehicles, while its generous lifting range puts wheels and undercar components up where you can work on them comfortably. With optional lift blocks, you can gain even more height for certain vehicles and jobs.
- 6,000 lb lifting capacity for cars and light trucks within rating.
- Approx. 4″ lowered height to work with many low-clearance vehicles.
- 26″ lifting height at the platforms in standard configuration.
- 27.5″ lift height with 1.5″ blocks, and up to 29″ with optional 3″ blocks.
- Multiple locking positions so you can choose a comfortable working height.
Full-Length Rubber-Topped Platforms & Lift Blocks
The LR-60 features full-length platforms with rubber-topped pads to help protect vehicle underbodies and improve grip. Included solid rubber lifting blocks allow you to position contact points for both frame-contact and many unibody vehicles.
- Full-length rubber-topped platforms for stable, non-slip contact.
- Rubber lifting blocks included for flexible lift-point positioning.
- Wide pad surface helps distribute load over a larger area.
- Durable rubber surfaces designed for repeated daily use.
Rugged Steel Channel Frame & Safety Locks
The lift is built around a heavy-duty steel channel frame designed to support repeated lifting within its rated capacity when properly installed and used. Multi-position mechanical safety locks support the lift at height and are controlled from a single release point for operator convenience.
- Heavy-duty steel channel frame designed for shop use.
- Multi-position mechanical safety locks to secure the lift at working height.
- Single-point safety lock release for straightforward lowering.
- Designed to provide level, stable lifting when used on suitable concrete.
Electric/Hydraulic Power System
The LR-60 uses an electric-hydraulic power unit for smooth, consistent lifting and lowering. Dual-voltage motor capability makes it adaptable to common shop power configurations when wired correctly by a qualified electrician.
- Electric/hydraulic power system for controlled raising and lowering.
- Motor is typically configured for 115V operation from the factory, with 208–230V single-phase capability when re-wired per the motor data plate.
- Typical lift time of around 35 seconds to full height (varies with load and temperature).
- Requires a properly sized dedicated electrical circuit installed to code.
Who the BendPak LR-60 Is For
- Shops wanting a dedicated tire/brake bay without committing to a full-rise lift.
- General repair facilities that need faster wheel and undercar access in tight spaces.
- Home enthusiasts who want a professional-grade low-rise lift for their garage.
- Detail, body, and appearance shops looking for easier lower-panel and undercar access.
Key Features
- 6,000 lb capacity low-rise scissor lift.
- Approx. 4″ collapsed height to work with many low vehicles.
- Lift height 26″, up to 27.5″–29″ with lift blocks.
- Electric/hydraulic power system with single-point safety release.
- Multi-position safety locks for multiple working heights.
- Rubber lifting blocks included for unibody and frame-contact lifting.
- Dropped crossbar design for additional drive-over clearance and stability.
- Heavy-duty steel channel frame for long-term durability.
Technical Specifications
| Model | LR-60 |
|---|---|
| Lift Type | Low-rise scissor pad lift |
| Lifting Capacity | 6,000 lbs |
| Max Capacity / Front Axle | 3,000 lbs |
| Max Capacity / Rear Axle | 3,000 lbs |
| Lift Height (platforms) | 26″ |
| Lift Height with 1.5″ Blocks | 27.5″ |
| Lift Height with Optional 3″ Blocks | 29″ |
| Lowered Height | 4″ |
| Overall Pad Length | 53″ |
| Overall Length | 82″ |
| Overall Width | 70.5″ |
| Lift Pad Dimensions | 18″ × 52″ |
| Lift Time | Approx. 35 seconds |
| Power Unit | 115/208–230 VAC, 50–60 Hz, single phase (dual-voltage motor) |
| Shipping Weight | Approx. 814 lbs |
All specifications are approximate and may vary slightly by production run. Always refer to the current manufacturer manual for final dimensions, clearances, and electrical requirements before planning your installation.
Safety & Installation Guidance
Any lift must be installed and operated correctly to perform safely. The LR-60 should be set up on suitable, properly cured concrete and connected to the appropriate electrical supply following all applicable codes.
- Have installation and setup performed or verified by qualified lift technicians.
- Confirm concrete thickness, strength, and condition meet the manufacturer’s minimum requirements.
- Use a dedicated electrical circuit sized per the power unit’s specifications and installed by a licensed electrician.
- Always position rubber blocks and pads at approved lifting points and verify solid contact before raising the vehicle.
- Raise the lift to a mechanical lock position before working underneath.
- Use wheel chocks and appropriate personal protective equipment at all times.
Why Buy the BendPak LR-60 from Dunfer?
- Lift-focused store: Dunfer specializes in vehicle lifts and garage equipment for US garages and shops.
- Secure checkout: pay confidently using PayPal.
- Safety-first approach: we emphasize realistic capacity use, proper installation, and clear specifications.
- Need help matching this low-rise lift to your space and vehicles? Contact us at contact@dunfer.com or +1 332-278-8241.
If you’re looking for a 6,000 lb low-rise scissor lift to power fast wheel and brake service in a compact bay, the BendPak LR-60 from Dunfer is a smart, space-efficient addition to your Scissor Lifts lineup.
