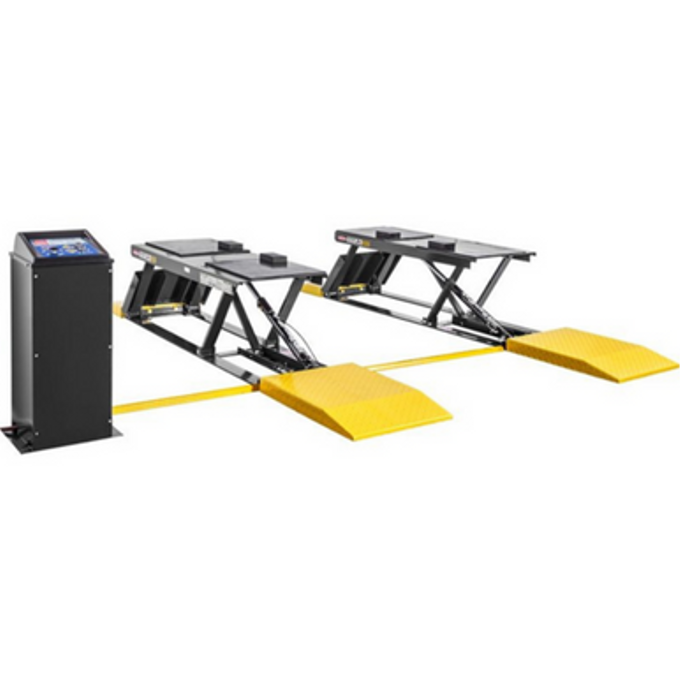

BendPak P-9000LT – 9,000 lb Low-Rise Open-Center Pit-Style Lift, 220V

BendPak P-9000LT – 9,000 lb Low-Rise Open-Center Pit-Style Lift, 220V

The BendPak P-9000LT is a heavy-duty 9,000 lb low-rise, open-center, pit-style lift designed to turn fast-lube pits and compact bays into full-service workstations. With dual-approach ramps, a low 3.15″ collapsed height, and frame-engaging, rubber-topped platforms, it delivers fast, stable lifting for many cars, SUVs, and light trucks within rating while keeping the center area open for true undercar access.

Open-Center Pit-Style Design

The P-9000LT is built specifically for pit-style and low-rise service environments. Its open-center layout and frame-engaging design make it ideal for oil-change facilities and service shops that want to add tire, brake, and suspension work without giving up pit access.

• Open-center design preserves access to the vehicle’s undercarriage.
• Frame-engaging platforms support the vehicle at proper lifting points instead of the wheels.
• Perfect for converting fast-lube pits into full-service bays with wheel and brake capability.
• Compact footprint helps you make the most of limited shop or garage space.

Surface-Mount or Flush-Mount Flexibility

This pit lift is part of a system that supports both surface and flush-mount installations. The P-9000LT is typically surface-mounted with extended approach ramps, while the related P-9000LTF version can be recessed for a flush, drive-over solution. With the proper configuration, you can tune the lift to your bay and workflow.

• Surface-mount use with extended approach ramps for pit-style or floor installations.
• Optional flush-mount configuration (via the P-9000LTF version) for recessed, drive-over setups.
• Ramps are designed with a gentle slope to help reduce contact with low ground-clearance vehicles.
• Mounts outside the pit rail so it does not interfere with the work area inside the pit.

Low Profile with Strong Lifting Range

With a 3.15″ lowered height and a 23.3″ platform lifting height (about 26.3″ with blocks), the P-9000LT offers a combination of easy vehicle loading and a practical service height for wheel and undercar work.

• 9,000 lb lifting capacity for many passenger cars, SUVs, and light trucks within rating.
• Lowered height: 3.15″ (80 mm) for easier loading and low-profile operation.
• Lifting height: 23.3″ (592 mm) at the platforms.
• Lifting height with blocks: 26.3″ (668 mm) for added working clearance.
• Comfortable height for tire, brake, suspension, and undercar service in pit or low-rise bays.

Rugged Platforms with Rubber-Topped Surfaces

The P-9000LT uses heavy-duty platforms with durable rubber-topped pad surfaces and lift blocks to help protect vehicle frames and underbodies while improving grip. This frame-engaging contact style is ideal for quick, repeatable setups in high-volume shops.

• Platform length: 58.5″ (1,484 mm).
• Platform width: 24″ (610 mm).
• Rubber-topped pad surfaces for traction and protection at contact points.
• Rubber lift blocks included for positioning under OEM-recommended lift points.
• Reinforced upper platform construction to support inboard loading.

Remote Pneumatic Safety Lock Release

The P-9000LT uses automatic, multi-position mechanical locks that engage as the lift rises. When it’s time to lower, a remote pneumatic safety lock release allows you to disengage the locks and lower the lift with a push-button control at the console.

• Automatic multi-position safety locks engage as the lift raises.
• Air-operated lock release lets you lower the lift from a safe distance.
• Hands-free safety check system designed for quick, confident operation.
• Requires a suitable shop air supply for the pneumatic lock system.

1.5 HP Electric-Hydraulic Power Unit (220V)

A heavy-duty 1.5 HP electric-hydraulic power unit provides smooth lifting and lowering performance. The system is designed to run on 208–230V single-phase power, making it a familiar fit for many US service facilities and well-equipped home garages.

• Standard motor: 1.5 HP / 208–230 VAC / 60 Hz / single phase.
• Speed of rise: approximately 55 seconds to full height (varies with load).
• Electric-hydraulic operation for consistent, controlled movement.
• Multi-station and special-voltage power options may be available from the manufacturer.

Rugged Steel Channel Frame

The P-9000LT is built around a rugged steel channel frame that provides a wide, stable base for the 9,000 lb capacity class. When properly installed and anchored on suitable concrete, it’s designed to deliver repeatable performance in busy commercial environments.

• Wide-base steel channel construction for strength and stability.
• Heavy-duty scissor mechanisms designed for frequent cycling.
• Powder-coated finish for corrosion resistance and a professional appearance.
• Engineered for indoor installation and use on properly rated concrete.

Who the BendPak P-9000LT Is For

• Fast-lube and oil-change shops that want to add wheel, brake, and undercar service to existing pits.
• General repair facilities needing a compact, pit-style low-rise lift for high-turnover service bays.
• Serious home garages that have pit-style layouts and want professional-grade lifting equipment.
• Shops seeking an open-center low-rise lift that doesn’t block access to the undercarriage.

Key Features

• 9,000 lb capacity low-rise, open-center, pit-style lift.
• 3.15″ lowered height; 23.3″ lift height, about 26.3″ with lift blocks.
• Frame-engaging, rubber-topped platforms with included lift blocks.
• Dual-approach ramp design for flexible vehicle entry.
• Remote pneumatic safety lock release with automatic multi-position locks.
• 1.5 HP, 208–230V single-phase electric-hydraulic power unit.
• Mounts outside the pit rail, preserving center pit workspace.
• Rugged steel channel frame with powder-coated finish.

Technical Specifications

All specifications are approximate and may vary slightly by production run. Always refer to the current BendPak installation and operation manual for final dimensions, clearances, electrical requirements, and pit layout guidelines before planning your bay.

Safety & Installation Guidance

Any low-rise pit lift must be installed and used correctly to perform safely. The P-9000LT is designed for indoor use only and must be mounted on properly rated concrete and connected to a correctly sized electrical circuit and shop air supply.

• Have installation and setup performed or verified by qualified lift technicians.
• Confirm pit dimensions, concrete thickness, and strength meet or exceed the manufacturer’s minimum requirements.
• Use a dedicated 208–230V single-phase circuit sized per the power unit, installed by a licensed electrician.
• Provide shop air for the pneumatic safety lock system per BendPak’s air pressure and volume guidelines.
• Always position rubber blocks at approved lifting points and verify solid contact before raising the vehicle.
• Raise the lift to a mechanical lock position before working underneath, and always use wheel chocks and appropriate PPE.

Why Buy the P-9000LT from Dunfer?

• Lift-focused store: Dunfer specializes in vehicle lifts and garage equipment for US garages and shops.
• Secure checkout: pay confidently using PayPal.
• Safety-first information: we emphasize realistic capacity use, proper installation, and clear specs.
• Need help confirming fitment, pit layout, or power requirements? Contact us at contact@dunfer.com or +1 332-278-8241.

If you’re ready to add a 9,000 lb low-rise, open-center pit lift that turns an oil-change bay into a full-service station, the BendPak P-9000LT from Dunfer is a powerful, shop-ready upgrade for your Scissor Lifts lineup.
