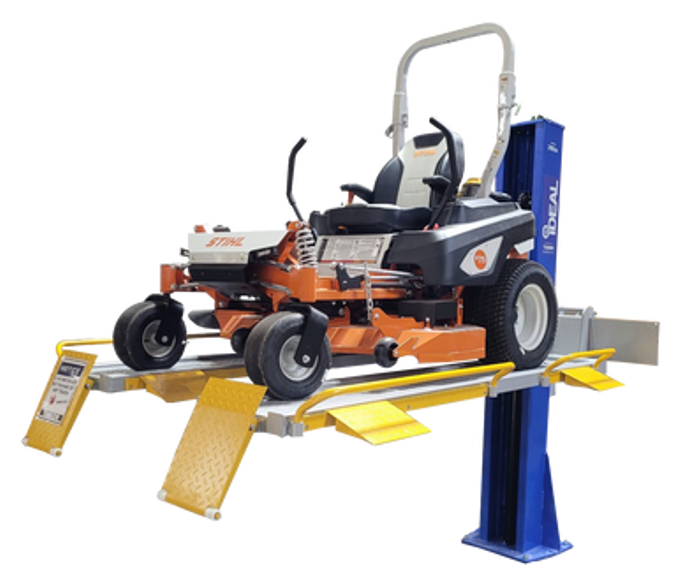

iDEAL SC-2K-UTV-X – 2,000 lb Single Column UTV & Mower Storage / Service Lift
The iDEAL SC-2K-UTV-X is a high-rise, single column, multi-use lift designed specifically for ATVs, UTVs, golf carts, and riding & zero-turn mowers. With a 2,000 lb capacity and fully adjustable platforms, it doubles as both a compact storage solution and a serious service lift for power sports and turf equipment.

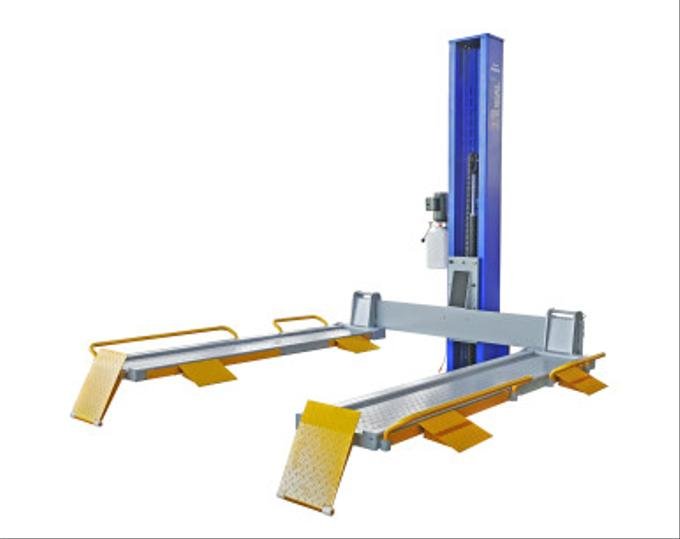

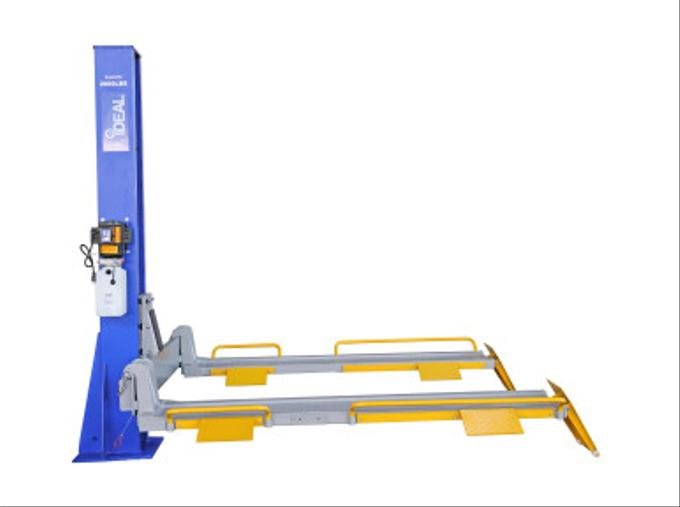

Multi-Use Single Column Design

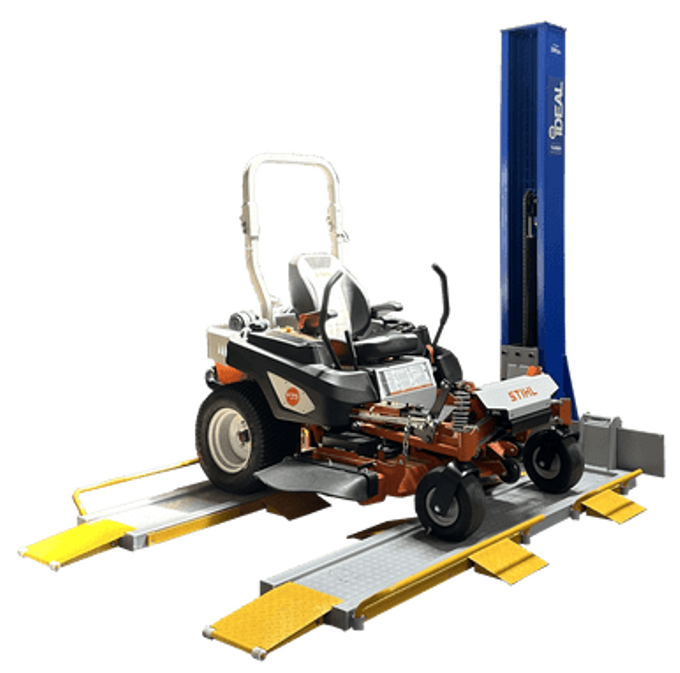

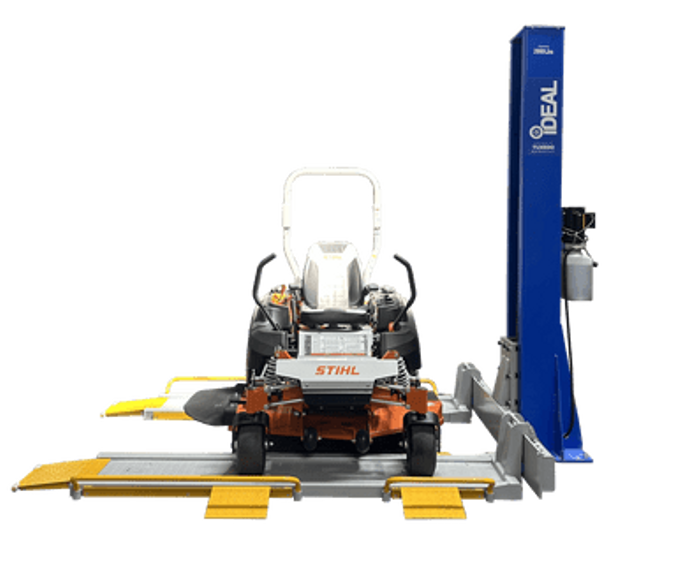

Instead of taking over an entire bay, the SC-2K-UTV-X uses a space-saving single column layout with dual adjustable platforms. This gives you clear access around the vehicle while keeping your shop or garage floor open for other work. The smart platform design allows front or side loading, so you can easily position different machines without wrestling with awkward approaches or tight angles.
- Ideal for small to mid-sized ATVs and UTVs
- Perfect for golf carts, riding mowers, and zero-turn mowers
- Excellent choice for power sports dealers, lawn equipment centers, and home acreage garages
Adjustable Platforms for Different Vehicles
The heart of this lift is its multi-adjustable platform system. Each platform rides on spring-loaded, quick-release nylon rollers, allowing you to slide and lock them at a range of widths to match different machines. Once set, heavy-duty lock pins and retainer brackets secure the platforms for confident lifting.
- Quick-adjust platform widths for narrow ATVs or wider UTVs and mowers

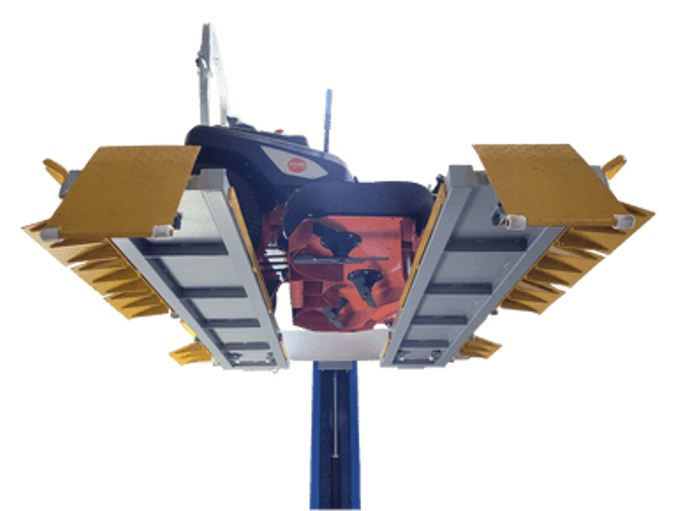

- Raised platforms provide under-deck clearance for servicing mower blades and decks
- Multiple locking heights give you the working level or storage height you need

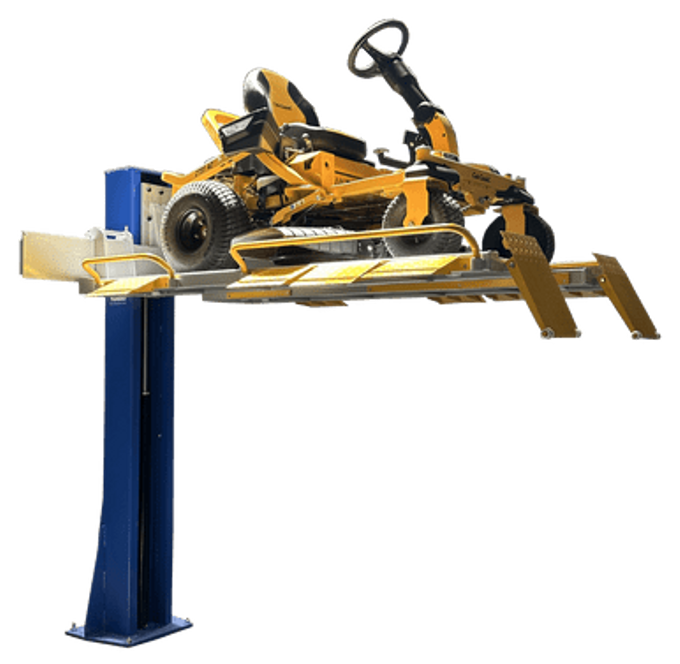

High-Rise Storage & Service Capabilities
With a generous rise height and multiple locking positions, the SC-2K-UTV-X works as both a service lift and a vertical storage solution. Lift and lock units up and out of the way to free floor space, or bring them to a comfortable service height for blade changes, engine work, inspections, and detailing.
- High clearance under the platforms for stand-up access in many shop setups
- Excellent for seasonal storage of mowers and recreational vehicles
- Designed for frequent up-and-down operation in commercial environments
Built-In Safety & Convenience
The SC-2K-UTV-X is engineered with safety and long-term durability in mind. A quality electric/hydraulic power unit, heavy-duty chain-drive cylinder, and single-point manual lock release help make daily use smooth and predictable.
- 20 different mechanical locking positions for secure height selection
- High-quality 115V power unit (20 amp, single phase) for easy shop integration
- Optional mounting positions for the power unit – front, side, or rear of the column
- Durable powder-coat finish to stand up to shop use
- Quick-removal tubular wheel stop bars for the platform sides
- Eight multi-position steel side ramps plus pivoting wheel-stop ramps with nylon rollers
Technical Specifications
| Model | SC-2K-UTV-X |
|---|---|
| Lift Type | Single column, multi-use storage & service lift |
| Capacity | 2,000 lbs |
| Width Overall | 102″ |
| Height Overall | 106.3″ |
| Depth / Length Overall | 130″ |
| Max Clearance Under Platforms | 76.8″ |
| Platforms Min Height | 4.7″ |
| Platforms Max Height | 81.3″ |
| Platform Width | 17.7″ |
| Platform Runway Width | 12.2″ |
| Platform Length | 90.4″ |
| Adjustable Platform Widths (OD) | 52.8″ – 84.6″ |
| Adjustable Side Ramps Widths (CL) | 35.4″ – 67″ |
| Locking Positions | 20 |

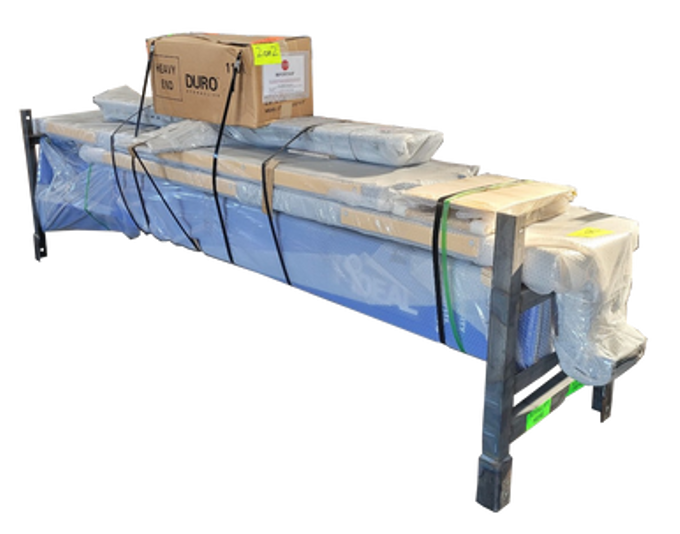

| Ship Weight | 1,624 lbs |
| Power | 115V – 20 Amp – 1PH electric / hydraulic |
All specifications are approximate and subject to change. Always refer to the manufacturer’s manual for the latest technical data and installation requirements.
Safety & Installation
For best performance and safety, the SC-2K-UTV-X must be installed and operated correctly. Dunfer strongly recommends:
- Professional installation by qualified personnel
- Verifying ceiling height, floor condition, and power availability before purchase
- Reading and following the complete manufacturer’s operating manual
- Using wheel chocks and appropriate shop safety equipment at all times
Why Order the SC-2K-UTV-X from Dunfer?
- Lift specialists: Dunfer focuses on vehicle lifts and garage equipment for US customers.
- Secure checkout: pay safely using PayPal.
- Professional, safety-first approach in product selection and information.
- Support from our team via
contact@dunfer.com or
+1 332-278-8241.
If you’re looking for a compact, high-rise solution to lift and store UTVs, ATVs, golf carts, and mowers, the iDEAL SC-2K-UTV-X from Dunfer delivers the versatility, height, and adjustability your garage or shop needs.
