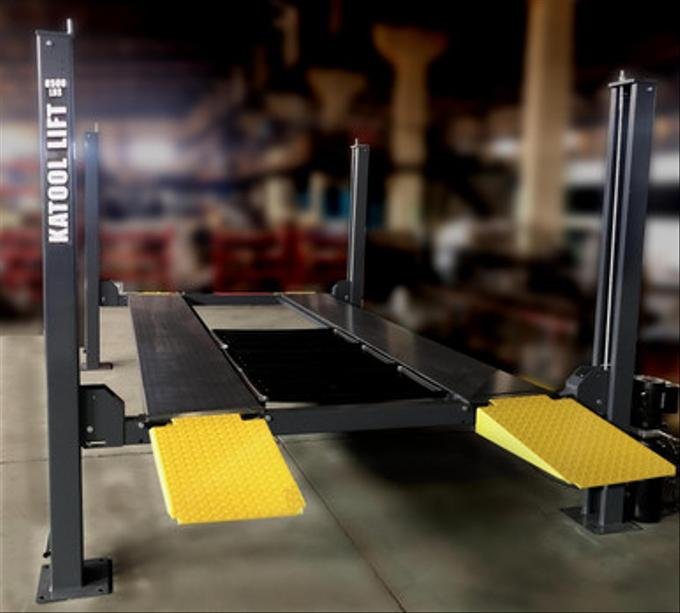

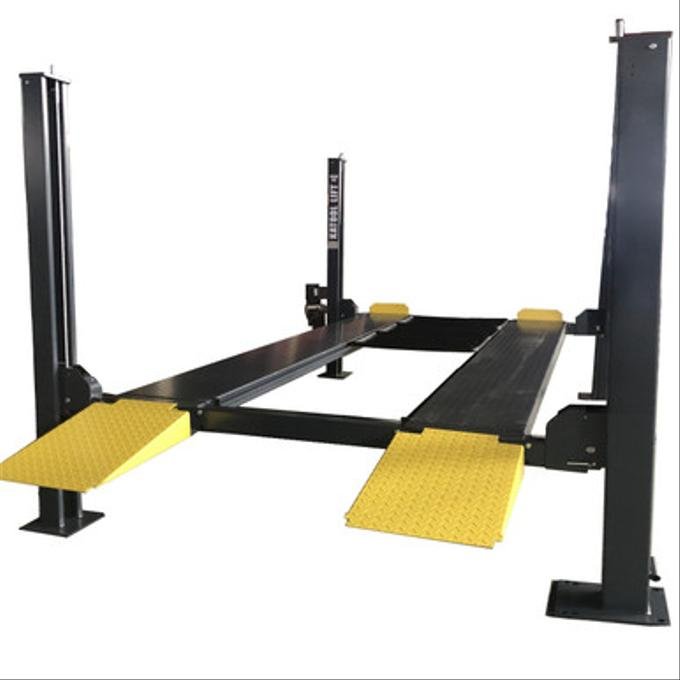

Katool KT-4H850 – 8,500 lb Heavy-Duty 4-Post Parking & Service Car Lift
The Katool KT-4H850 is a professional-grade 8,500 lb 4-post car lift built for both vehicle storage and everyday maintenance. With CE-certified construction, non-skid diamond runways, and a high-quality 110V hydraulic power unit, it’s a practical choice for home garages, collectors, and light commercial shops that want reliable lifting and clean, organized storage in one system.
Storage, Parking & Service in a Single Lift
The KT-4H850 is designed for flexibility. Drive on, raise the vehicle, and lock the runways at one of multiple height positions for:
- Parking a second vehicle or equipment underneath to free up floor space
- Seasonal storage for collector cars, sports cars, or daily drivers
- Light service such as fluid checks, exhaust work, inspections, and detailing
With its full-length runways and robust 4-post design, the lift is engineered to handle sedans, SUVs, and many light trucks within its 8,500 lb capacity.
Heavy-Duty Capacity & CE-Certified Construction
This lift is built around a strong steel structure designed to meet demanding loading standards. It is CE approved and tested beyond its rated capacity for both dynamic and static loads when installed and used correctly.
- 8,500 lb lifting capacity for cars, SUVs, and light trucks within rating
- CE-approved and certified for added peace of mind
- Tested to 115% dynamic and 150% static loading standards
Parking Lift with Service-Friendly Features
While the KT-4H850 is ideal for parking and storage, it also includes features that make routine service more convenient:
- Non-skid diamond runways for confident drive-on and drive-off
- Adjustable safety lock ladders with multiple locking positions
- Jack tray included – use a floor jack or bottle jack to lift one axle for wheel and brake work
- Two drip trays to catch fluids from upper vehicles and protect the one below
Safety & Locking System
Safety is built into the KT-4H850 with both primary and secondary protection layers. A single-point manual safety lock release gives the operator clear control, while mechanical locks at each post help secure the lift at height.
- Single-point manual safety lock release for easy, centralized control
- Four mechanical locking devices – one in each post
- Each lock features both primary and secondary safety mechanisms
- Multiple locking positions let you choose your ideal working or storage height
Caster Kit & Included Accessories
One of the most useful features of this lift is its ability to be moved (unloaded) when equipped with the included caster kit. This allows you to reconfigure your garage or shop layout without committing the lift permanently to one spot.
- Caster kit included – roll the lift around the shop when it is not loaded
- Two removable approach ramps for easy drive-on/drive-off
- Two drip trays for clean storage over another vehicle
- Jack tray for lifting one end of the vehicle with a jack
Hydraulic Power & Operation
The KT-4H850 uses a high-quality hydraulic system designed for smooth raising and lowering. It runs on 110V power as standard, with an optional 220V configuration available from the manufacturer.
- High-performance hydraulic power unit
- 110V / 60 Hz / 1-phase motor (220V / 60 Hz / 1-phase optional)
- Typical lift time of about 75 seconds up and 40 seconds down
Key Features
- 8,500 lb lifting capacity
- 4-post design for parking, storage, and light service
- Non-skid diamond plate runways
- Single-point manual safety lock release
- Four mechanical locks with primary and secondary safety systems
- Adjustable safety lock ladders with multiple lock positions
- Caster kit, two drip trays, and jack tray included
- High-quality hydraulic system with 110V standard motor
Technical Specifications
| Model | KT-4H850 |
|---|---|
| Lift Type | 4-post parking / storage / service car lift |
| Lifting Capacity | 8,500 lbs (3,850 kg) |
| Max. Lifting Height | 70.87″ (1,800 mm) |
| Lifting Time | Approx. 75 s up / 40 s down |
| Post Height | 83.66″ (2,125 mm) |
| Overall Width | 107.95″ (2,742 mm) |
| Overall Length (with ramps) | 198.43″ (5,040 mm) |
| Inside Column Width | 94.72″ (2,406 mm) |
| Minimum Runway Height | 4.76″ (121 mm) |
| Power Unit | 110 VAC / 60 Hz / 1 PH (220V optional) |
| Net Weight | Approx. 1,820 lbs (826 kg) |
| Certification | CE approved; tested to 115% dynamic and 150% static load |
All dimensions and specifications are approximate and may vary slightly by production run. Always refer to the current manufacturer manual for final technical data, clearances, and power requirements.
Safety & Installation Guidance
As with any vehicle lift, correct installation and operation are essential. This lift must be installed on suitable concrete and used according to the manufacturer’s instructions. Dunfer strongly recommends:
- Professional installation by qualified lift installers
- Concrete thickness of at least 3.93″ (100 mm) with a minimum 3,000 PSI rating
- Verifying ceiling height, vehicle dimensions, and garage layout before purchase
- Reading and following the full installation and operation manuals
- Using wheel chocks and appropriate shop safety equipment at all times
Why Buy the KT-4H850 from Dunfer?
- Lift-focused store: Dunfer specializes in vehicle lifts and garage equipment for US customers
- Secure checkout: pay confidently using PayPal
- Safety-first information: we emphasize proper installation and realistic use of lift capacity
- Questions about fitment, ceiling height, or power? Contact us at
contact@dunfer.com or
+1 332-278-8241
If you’re ready to add true storage capacity and professional-grade lifting to your garage, the Katool KT-4H850 8,500 lb 4-post car lift from Dunfer is a strong, space-efficient solution for both parking and maintenance.
