QuickJack 5000TLX Bundle – 5,000 lb Extended-Length Portable Car Lift with Wall Hangers & Pinch-Weld Blocks, 110V
The QuickJack 5000TLX Bundle combines the extended-length 5000TLX portable car lift with a dedicated set of wall hangers and pinch-weld blocks, giving you a complete, space-saving lifting solution for your home garage or shop. With a 5,000 lb capacity, 24″ max lift height (with blocks), and super-low 3″ collapsed height, this ALI certified system is built for longer-wheelbase cars, sports cars, and light trucks within rating, all powered by a convenient 110V power unit.
Extended-Length Portable Lift for Longer Wheelbases
The 5000TLX is the extended-length version of the popular QuickJack 5000 series. Its longer frames and increased lift-point reach are designed specifically for vehicles whose factory lift points sit farther apart, such as many full-size sedans and longer sports cars.
- Extended-length design with approx. 76″ frame length to reach longer wheelbases.
- Lift-point reach up to about 66″, with a minimum spread around 43″ when correctly positioned.
- Ideal for many sedans, sports cars, and light-duty trucks within the 5,000 lb rating.
- Still compact enough to store flat against a wall when not in use.
5,000 lb Capacity & Up to 24″ Lift Height
QuickJack is designed as a frame-engaging portable lift, not a floor jack. Once positioned at the correct lift points and raised, it delivers stable support for a wide variety of vehicles within its rating, with a working height that’s significantly more comfortable than jack stands.
- 5,000 lb (2,268 kg) lifting capacity for many passenger cars and light trucks within spec.
- Max lift height up to approx. 24″ when using the included rubber lift blocks.
- Collapsed height around 3″ for easy placement under lower vehicles.
- Approx. 30-second rise time and quick stow/un-stow in under a minute when set up correctly.

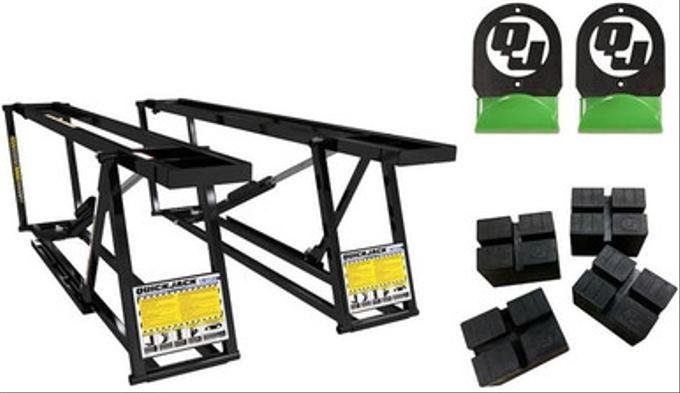

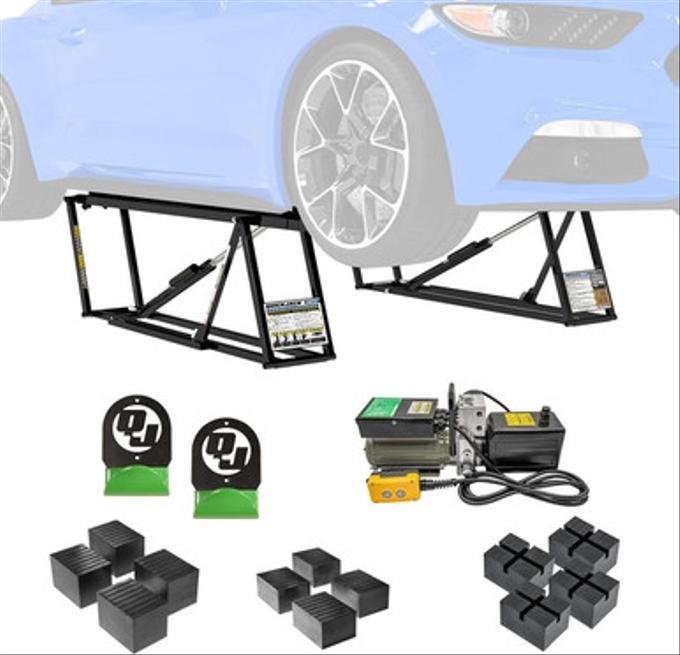

Bundle Contents – Ready for Lifting & Storage
This bundle is designed to give you everything you need to lift safely, protect factory lift points, and store the system neatly when you’re done.
- QuickJack 5000TLX portable car lift – left and right frame assemblies.
- 110V electric-hydraulic power unit with pendant control and hydraulic hoses.
- Wall hanger set – heavy-duty hooks that let you hang both frames vertically to free floor space.
- Pinch-weld block set – specialized rubber blocks designed to capture and protect factory pinch-weld lift points.

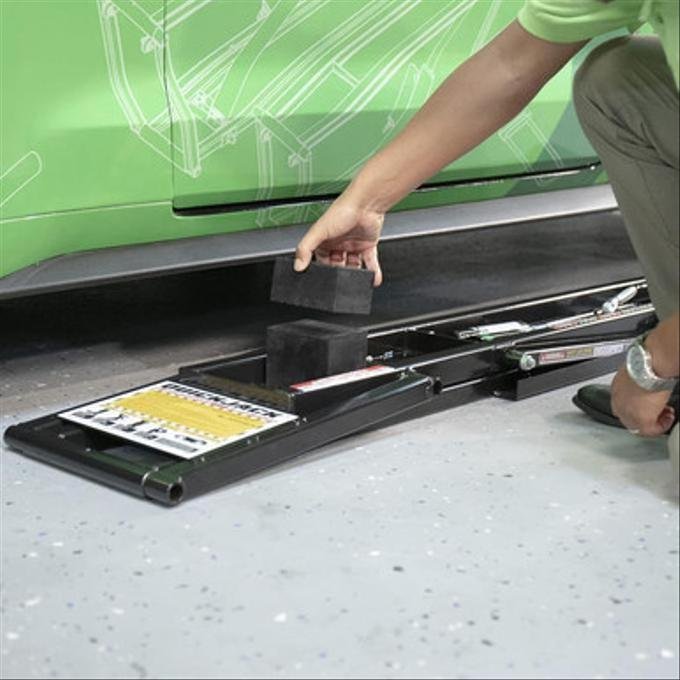

- Standard rubber lift blocks (medium/tall) for flexible contact heights at OEM lift locations.
Fast, Portable Setup for Real Garage Work
QuickJack is all about giving you lift convenience without a permanent installation. Roll the frames into position, plug in the power unit, connect the quick-disconnect hoses, place your blocks, and you’re ready to lift.
- No permanent mounting required – use it where your 110V outlet and flat floor allow.

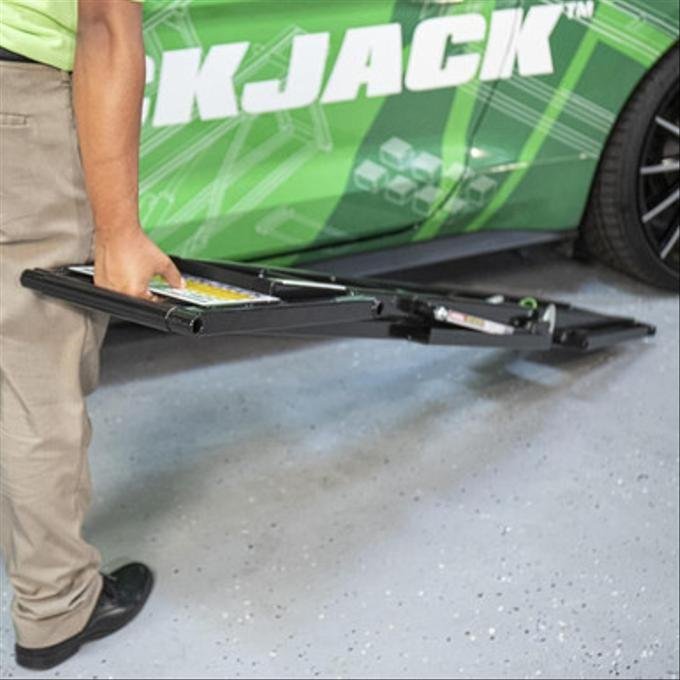

- Steel-mounted UHMW rollers help you maneuver the frames around the garage.

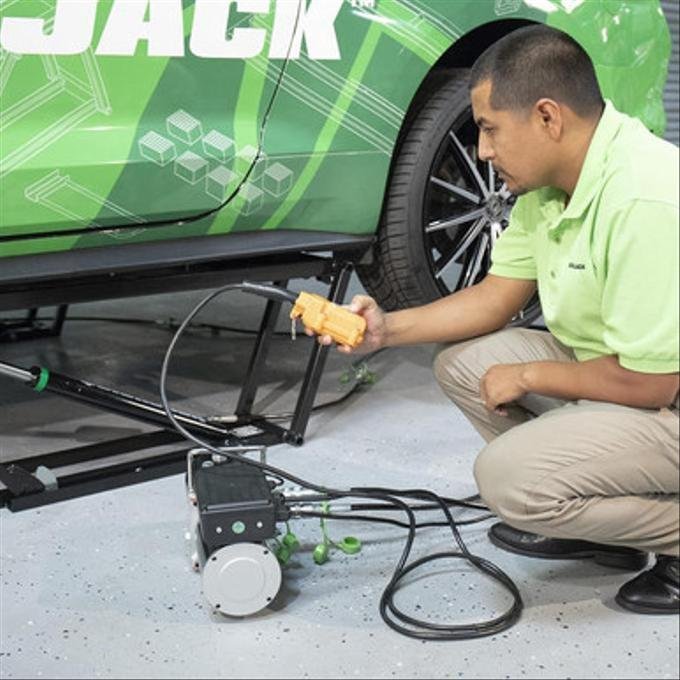

- One-touch pendant control for raising and lowering.

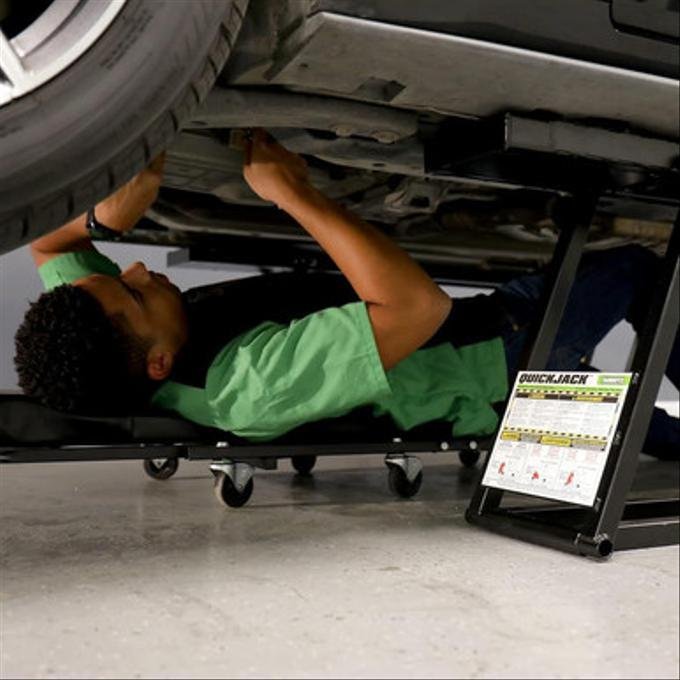

- Open-center design between the frames for better access to the undercarriage.
Auto-Locking Safety Bars & ALI Certification
Safety is built into every 5000TLX. As the lift rises, dual-position automatic safety lock bars engage to support the load mechanically. The 5000TLX is also ALI certified, meaning it has been independently evaluated against recognized lift safety standards when used as intended.
- Auto-locking safety bars with dual height positions (mid-rise and full-rise).
- Hydraulic flow divider in the power unit helps maintain level lifting.
- ALI certified for added assurance when installed and operated according to the manual.
- Integrated velocity-fuse style safety valves in the cylinders are designed to help prevent sudden descent in case of hydraulic failure.
115–120V Power Unit for Home & Shop Use
The bundle includes a 110V-compatible power unit that connects to a standard household-style outlet (on a properly rated circuit). That means no special wiring for many home garages, while still being right at home in a professional bay.
- Power unit: approx. 110–120V AC, 60 Hz, single phase.
- Remote pendant with generous cord length for safe operation away from the vehicle.
- Requires hydraulic fluid (typically ATF) and a brief bleeding procedure during initial setup.
Who the QuickJack 5000TLX Bundle Is For
- Home enthusiasts who want a real car lift without installing posts or drilling into the floor.
- Shops and detailers needing a portable, open-center lift for tires, brakes, and undercar work.
- Owners of longer-wheelbase sedans and sports cars that are beyond the reach of standard QuickJack TL models.
- Garages where vertical wall storage and minimal footprint are critical.

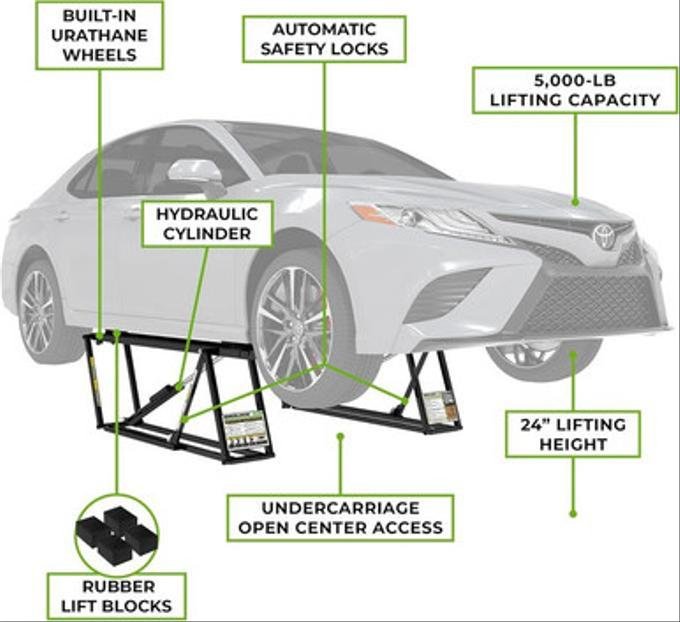

Key Features
- 5,000 lb capacity, ALI certified portable car lift.
- Extended 76″ frames with lift-point reach up to about 66″ for longer wheelbases.
- Super-low ~3″ collapsed height and up to 24″ lift height with blocks.
- Automatic safety lock bars with dual lock positions.
- 110V power unit with push-button pendant control.
- Wall hangers included for vertical frame storage.
- Pinch-weld block set included to protect factory lift points.
- Open-center design and frame-engaging lifting for better undercar access.
- Stores flat and out of the way when not in use.

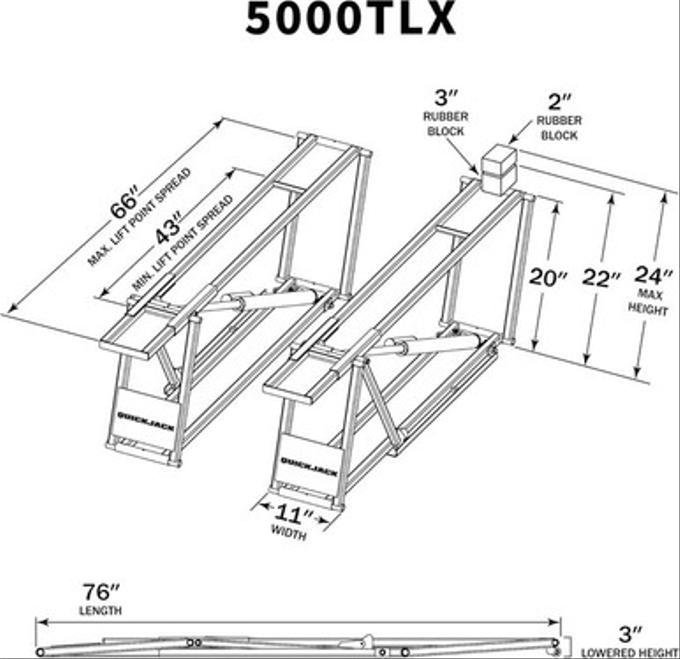

Technical Specifications
| Model | QuickJack 5000TLX Bundle |
|---|---|
| Lift Type | Portable frame-engaging low-rise lift (extended length) |
| Lifting Capacity | 5,000 lbs (2,268 kg) |
| Frame Length | Approx. 76″ per frame |
| Frame Width | Approx. 11″ (278 mm) |
| Collapsed Height (frame only) | Approx. 3″ |
| Lift Point Spread (Min) | Approx. 43″ |
| Lift Point Spread (Max) | Approx. 66″ |
| Max Lift Height | Up to approx. 24″ with supplied blocks |
| Power Unit Voltage | 110–120V AC, 60 Hz, 1 Ph |
| Rise Time | Approx. 30 seconds to full rise (varies with load) |
| Certification | ALI certified automotive lift |
| Included Accessories | Wall hanger kit, pinch-weld block set, standard rubber lift blocks, hydraulic hoses, pendant control |
| Typical Fluid | ATF or compatible hydraulic fluid (per manufacturer recommendations) |
All dimensions and specifications are approximate and may vary slightly by production batch. Always refer to the current QuickJack installation and operation manuals for exact measurements, setup instructions, and electrical requirements before planning your layout.
Safety & Installation Guidance
Even though QuickJack is portable and does not require anchoring, it is still a professional lifting device. It must be set up and operated correctly on a suitable floor for safe performance.
- Use only on a flat, solid, properly cured concrete surface that can support the rated load.
- Have electrical work (where needed) performed by a licensed electrician on a correctly sized circuit.
- Always consult the vehicle manufacturer’s recommended lifting points and use the correct rubber or pinch-weld blocks.
- Verify all blocks have solid, centered contact before lifting off the ground.
- Raise to a locked safety-bar position before working under or around the vehicle.
- Use wheel chocks, follow all instructions in the QuickJack manual, and wear appropriate PPE.
Why Buy the QuickJack 5000TLX Bundle from Dunfer?
- Lift-focused store: Dunfer specializes in vehicle lifts and garage equipment for US garages and shops.
- Complete bundle: extended-length lift, wall hangers, and pinch-weld blocks included.
- Secure checkout: pay confidently using PayPal through our WooCommerce store.
- Safety-first information: we emphasize realistic capacity use, proper setup, and clear specifications.
- Need help checking fitment, wheelbase, or garage layout? Contact us at contact@dunfer.com or +1 332-278-8241.
If you want an ALI certified, 5,000 lb extended-length portable car lift that stores flat, hangs on the wall, and includes everything you need to protect pinch-weld lift points, the QuickJack 5000TLX Bundle from Dunfer is a smart, space-saving upgrade for your garage or shop.
