QuickJack 7000TL – 7,000 lb Portable Car Lift, 110V Compact 2-Post Alternative

QuickJack 7000TL – 7,000 lb Portable Car Lift, 110V Compact 2-Post Alternative

The QuickJack 7000TL is a heavy-duty 7,000 lb portable car lift designed as a compact alternative to a traditional 2-post lift. Two low-profile frames slide under the vehicle and engage the frame at the manufacturer’s lift points, then rise together at the touch of a button. With a super-low 3.5″ collapsed height, up to about 24.5″ of lifting height (with blocks), and a 110V power unit, it’s a powerful solution for home garages, detail bays, and professional shops that want real undercar access without drilling into the floor.

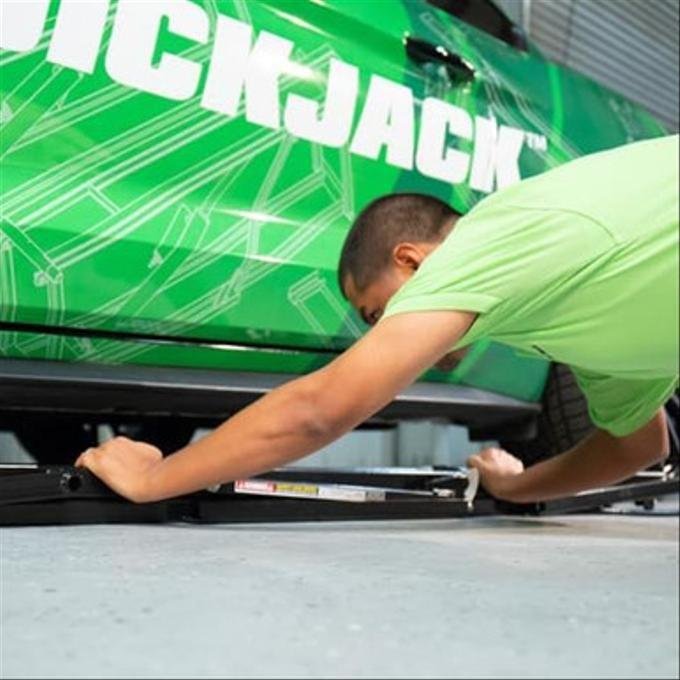

Portable Frame-Engaging Jack Lift

Unlike floor jacks and stands, the 7000TL supports the vehicle on both sides at once using long, steel frames. Once set on its automatic safety locks, it becomes a stable, frame-engaging jack lift that frees up your floor and gives you much better access for service.

• 7,000 lb capacity for many cars, SUVs, and light trucks within rating.
• Two separate lifting frames run alongside the vehicle and engage the frame rails.
• Open center between the frames for improved undercar access compared to ramps.
• Perfect upgrade from floor jacks and stands for serious DIY or shop use.

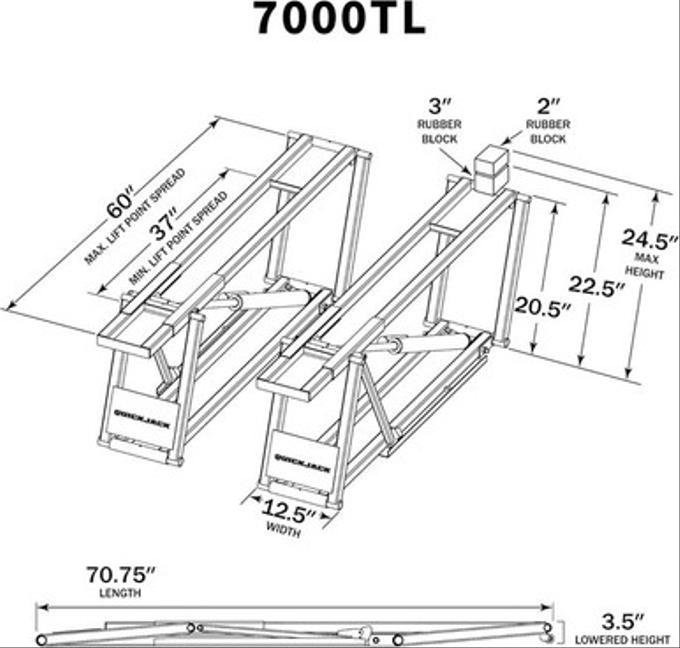

Low Collapsed Height & Up to ~24.5″ Lift Height

The 7000TL is designed to fit under a wide range of vehicles. Its low collapsed height works with many modern cars, while the raised height with blocks gives you a comfortable working position for wheels, brakes, and undercar work.

• Collapsed frame height: approx. 3.5″.
• Lift height (frame only): about 21″.
• Lift height with blocks: up to about 24.5″ using the included rubber lift blocks.
• Excellent for tires, brakes, suspension, exhaust, and general underside inspections.

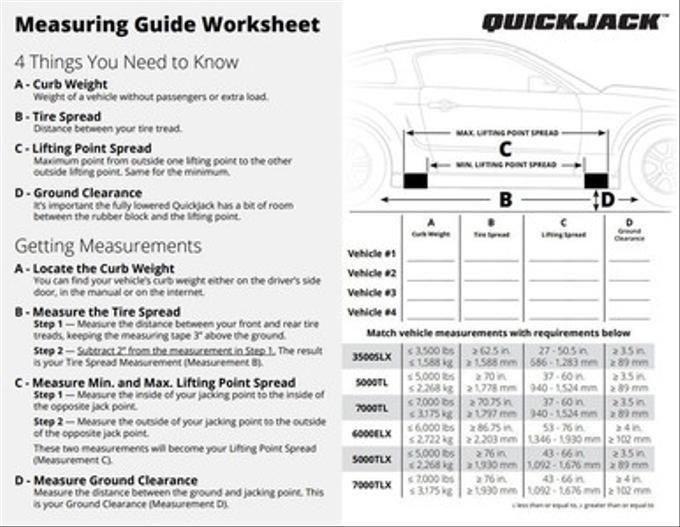

Standard-Length Frames for Trucks, SUVs & Cars

The QuickJack 7000TL uses standard-length frames that work for a wide range of wheelbases. The lifting trays accept a variety of block positions, so you can line up with factory lift points on many passenger vehicles, light trucks, and SUVs.

• Overall frame length: approx. 70.75″.
• Frame width: approx. 12.5″.
• Lift-point spread (min): around 37″ when block trays are set close together.
• Lift-point spread (max): around 60″ when trays are set to their widest positions.
• Designed to work with many trucks and SUVs when used within the 7,000 lb capacity and correct lift-point locations.

Automatic Safety Locks & Stable Support

As the 7000TL rises, its dual-position automatic safety locks engage to support the load mechanically. When you’re ready to lower, you simply raise slightly off the locks, release the lock bars, and lower the vehicle with the hydraulic control.

• Automatic safety locks glide into place as the frames rise.
• Two locking positions – mid-rise and full-rise – for flexible working height.
• Built-in flow control in the power unit is designed to keep both frames lifting evenly.
• Once on the locks, the weight is held on steel, not just hydraulic pressure.

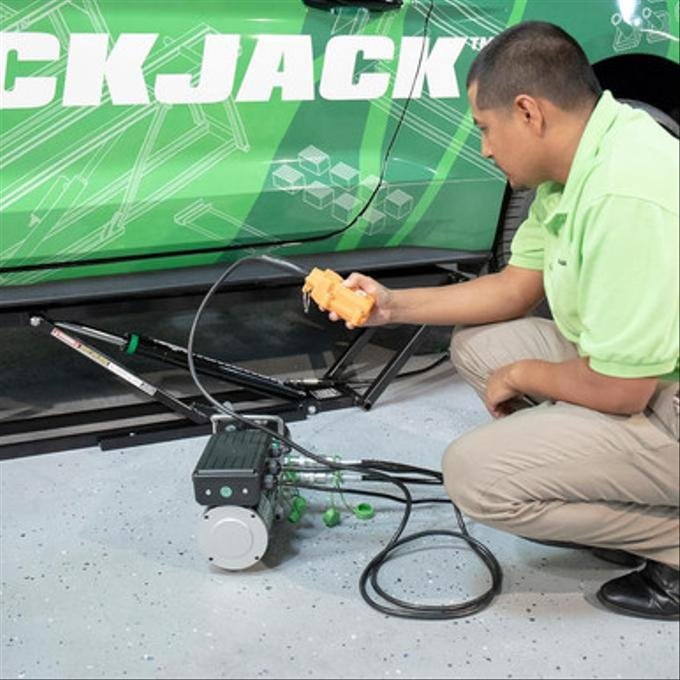

110V Electric-Hydraulic Power Unit

The QuickJack 7000TL in this configuration includes a 110V power unit that plugs into a standard household-style outlet (on a properly rated circuit). A simple pendant control lets you raise and lower the lift using one hand.

• Power unit voltage: approx. 110–120V AC, single phase.
• Push-button pendant control for one-handed operation.
• Typical rise time is well under a minute, depending on load and temperature.
• Requires appropriate hydraulic fluid (commonly ATF) and initial bleeding per the manual.

Fast Setup & Easy Storage

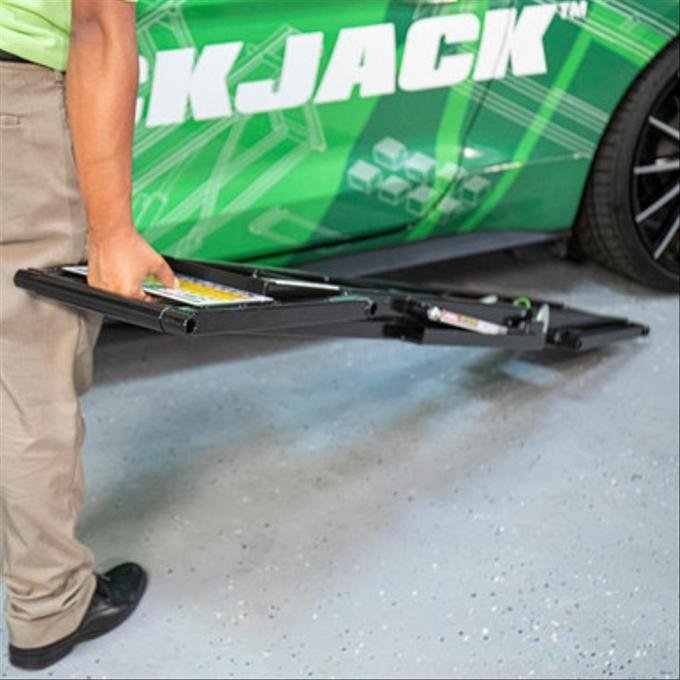

One of the biggest advantages of QuickJack is that it doesn’t live in the middle of your floor. You can slide the frames under the vehicle when you’re working, then stand them up and store them flat against a wall when you’re done.

• No drilling, anchors, or permanent installation required.
• Frames can be stored flat or vertically to save floor space.
• Quick-connect hydraulic fittings make it easy to set up and disconnect the hoses.
• Ideal for home garages that also need to park daily drivers in the same space.

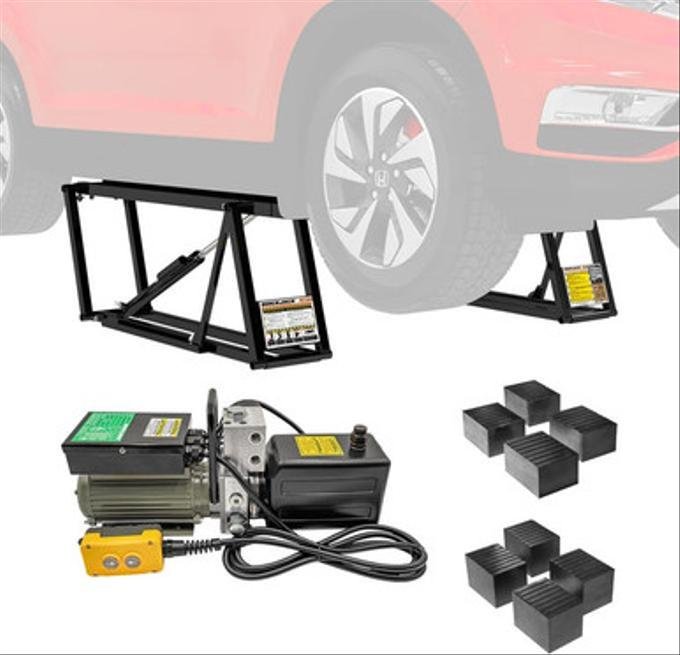

Included Components

This QuickJack 7000TL package typically comes with everything you need to operate the lift once hydraulic fluid is added, including the power unit, hoses, and rubber blocks for common lifting tasks.

• Left and right QuickJack 7000TL frame assemblies.
• 110V electric-hydraulic power unit with pendant control.
• Hydraulic hoses with quick-connect fittings.
• Assorted rubber lift blocks (short/tall) for different frame and pinch-weld locations.
• Owner’s manual covering assembly, bleeding, operation, and maintenance.

Who the QuickJack 7000TL Is For

• Home enthusiasts who want a compact alternative to a 2-post lift without permanent posts.
• Shops and mobile techs needing a portable lift for wheel and undercar work.
• Owners of heavier cars, trucks, and SUVs (within 7,000 lb rating) that are beyond lighter QuickJack models.
• Garages where keeping the floor clear and being able to store the lift against the wall is important.

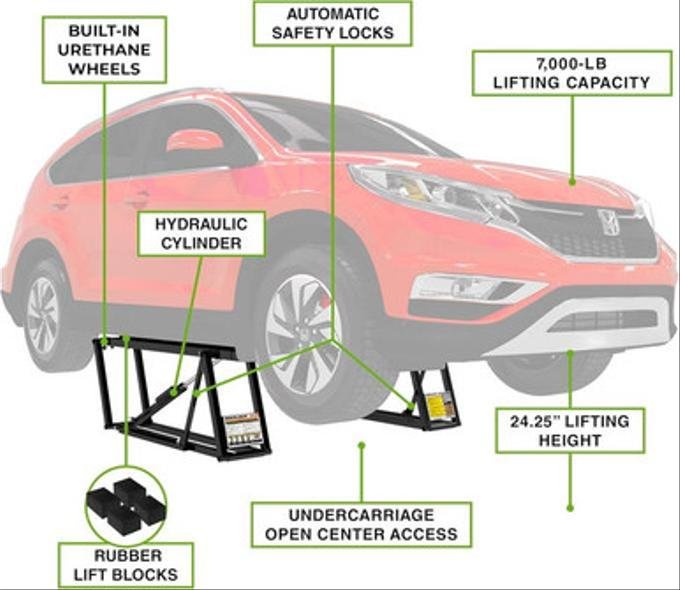

Key Features

• 7,000 lb capacity portable frame-engaging car lift.
• Collapsed height around 3.5″ for easier placement under many vehicles.
• Lift height up to about 24.5″ with rubber blocks.
• Approx. 70.75″ frame length and 12.5″ width per frame.
• Lift-point spread: roughly 37″–60″ between block trays.
• Automatic dual-position safety locks for mid-rise and full-rise support.
• 110V power unit with one-touch pendant control.
• Open-center layout between the frames for better undercar access.
• Stores flat or vertical to free up space in your Jack Lifts area.

Technical Specifications

All dimensions and specifications are approximate and may vary slightly by production batch. Always refer to the current QuickJack installation and operation manuals for exact measurements, lifting limits, and power requirements before planning your setup.

Safety & Setup Guidance

Even though QuickJack is portable, it is still a professional lifting device and must be used correctly. For best results, follow all manufacturer instructions and basic lift safety practices.

• Use only on flat, solid, properly cured concrete that can support the vehicle and lift.
• Make sure the 110V circuit is properly rated and in good condition; consult a licensed electrician if needed.
• Always position rubber blocks at factory-recommended lifting points and confirm firm, centered contact.
• Raise the vehicle to a locked safety-bar position before working under or around it.
• Use wheel chocks and follow all procedures in the QuickJack manuals and safety labels.

Why Buy the QuickJack 7000TL from Dunfer?

• Lift-focused store: Dunfer specializes in vehicle lifts and garage equipment for US customers.
• Secure checkout: pay confidently using PayPal through our WooCommerce store.
• Safety-first information: we emphasize realistic capacity use, proper setup, and clear specs.
• Need help confirming wheelbase, vehicle weight, or garage layout? Reach us at contact@dunfer.com or +1 332-278-8241.

If you want a 7,000 lb portable car lift that acts like a compact 2-post alternative and stores away when you’re done, the QuickJack 7000TL is a smart, space-saving addition to your Jack Lifts lineup at Dunfer.
