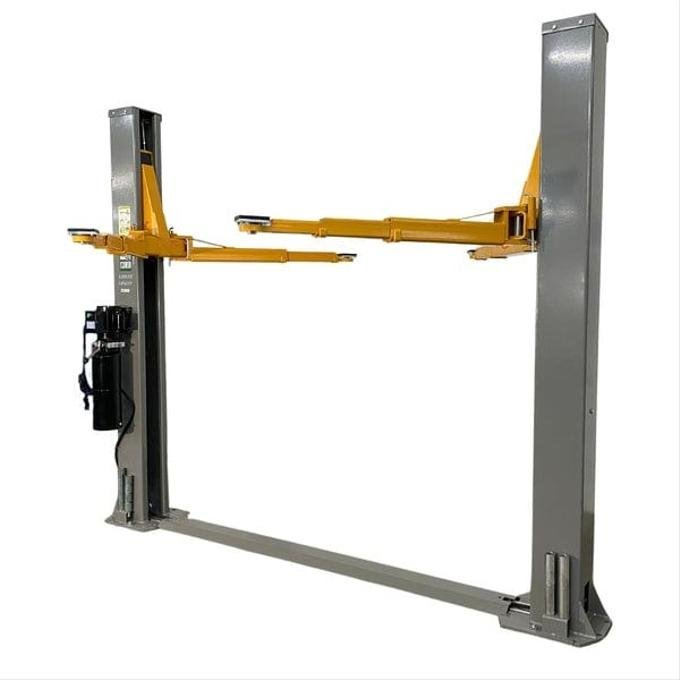

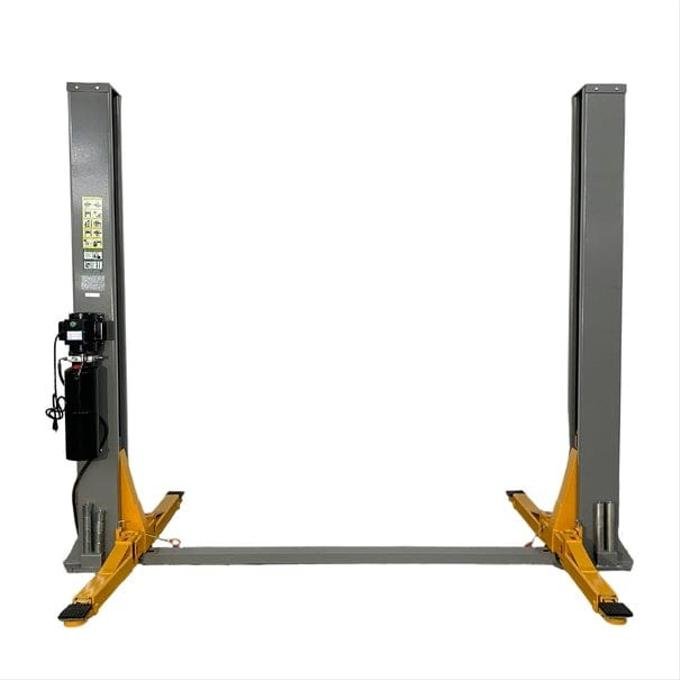

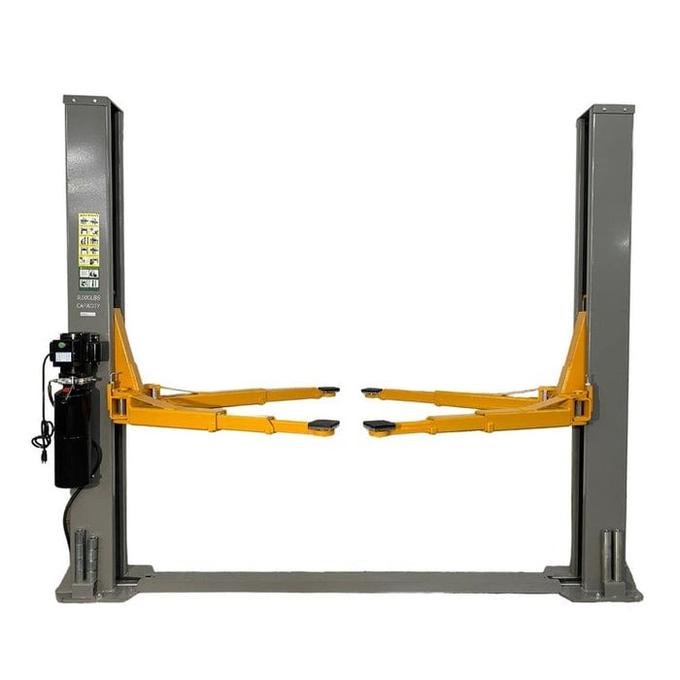

Triumph NT9FP – 9,000 lb Floor-Plate 2-Post Auto Lift, Symmetric/Asymmetric Arms, 220V
The Triumph NT9FP is a 9,000 lb floor-plate two-post lift engineered for garages that need full undercar access without the extra height of a clearfloor overhead design. It’s a proven choice for home garages, light commercial shops, and detail bays that service everything from compact cars to many SUVs and light trucks within its capacity.
Floor-Plate Design for Low Ceilings
Instead of an overhead crossbar, the NT9FP uses a low-profile floor plate to carry hydraulic hoses and cables. This makes it a strong option for garages with lower ceiling heights where an overhead clearfloor lift won’t fit.
- Designed to work in many low-ceiling garages and shops.
- Floor plate keeps cables and hoses protected along the floor between columns.
- Excellent for general repair bays, tire and brake service, and home garages.

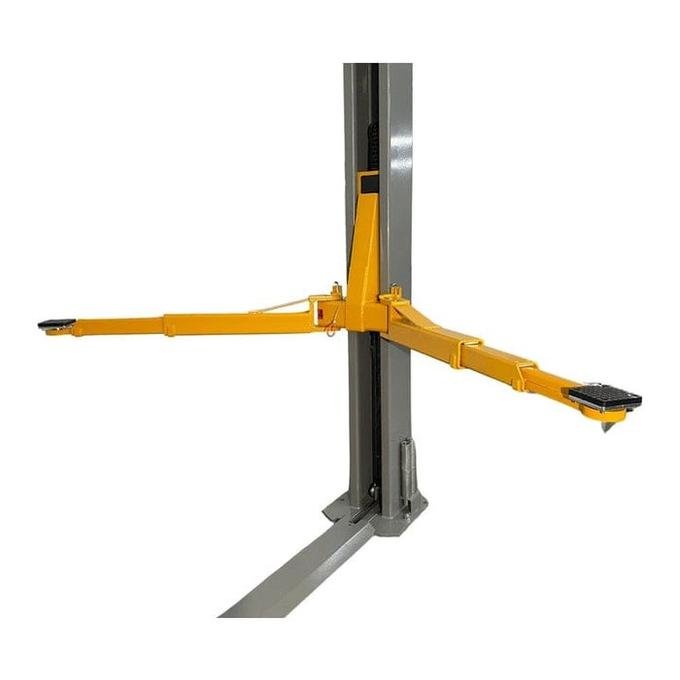

Symmetric & Asymmetric Arm Options
The NT9FP includes a combination arm set that can be configured for either symmetric or asymmetric lifting, giving you flexibility for different vehicle types and door-opening clearance.
- 2-stage and 3-stage arms to reach a wide range of lifting points.
- Symmetric setup for longer wheelbase trucks and vans within rating.
- Asymmetric setup to move vehicle doors behind the posts for easier entry/exit.
- Includes truck adapters to help lift taller-frame vehicles.
Capacity & Working Height
With a 9,000 lb lifting capacity, the Triumph NT9FP is built to handle most daily-driver cars, many SUVs, and light trucks within specification. A generous 72″ lifting height provides comfortable undercar working room, while the low 4.5″ pad height makes it easier to reach modern lower-profile vehicles.
- 9,000 lb capacity for typical passenger cars and light trucks within rating.
- 72″ max lifting height for undercar repair, exhaust, and inspection work.
- 4.5″ lowered pad height to help get under lower vehicles.
- Multiple lock positions allow you to choose a working height that’s comfortable.
Powerful 220V Hydraulic System
A dedicated 220V, 3 HP power unit drives the hydraulic system, delivering smooth, consistent lifting performance suitable for busy home garages and light commercial use when installed and wired correctly.
- 220V single-phase motor for strong, reliable lifting power.
- Typical lifting time around 40 seconds to full height.
- Includes power unit and floor-mounting hardware.
Safety & Construction
The NT9FP is built from heavy-duty steel and designed to meet recognized quality standards when installed on properly rated concrete. Dual-column safety locks and a dual-point lock release help keep the vehicle secure while in the air.
- Dual-point mechanical lock release – operator-controlled from both columns.
- Multiple lock positions in each column for secure storage and working heights.
- Engineered to be installed on properly rated, structurally sound concrete per manufacturer guidelines.
- Powder-coated finish for added corrosion resistance and clean appearance.
Who the Triumph NT9FP Is For
- Home enthusiasts upgrading to a full-size two-post lift.
- Light commercial shops and start-up garages needing a value-minded, 9K-capacity lift.
- Tire, brake, exhaust, and general repair bays with limited ceiling height.
Key Features
- 9,000 lb lifting capacity for a wide range of passenger vehicles.
- Floor-plate two-post design for low-ceiling applications.
- Symmetric or asymmetric arm setup with 2-stage and 3-stage arms.
- 72″ lifting height and 4.5″ pad height.
- 220V, 3 HP motor with hydraulic power unit included.
- Dual-point safety lock release and multiple locking positions.
- Truck adapters and floor anchors included in the package.
Technical Specifications
| Lift Type | Floor-plate two-post auto lift |
|---|---|
| Lifting Capacity | 9,000 lbs |
| Overall Height | Approx. 111″ |
| Overall Width | Approx. 135″ |
| Distance Between Posts | Approx. 111.5″ |
| Drive-Through Width | Approx. 100″ |
| Max. Lifting Height | Approx. 72″ |
| Lowered Pad Height | Approx. 4.5″ |
| Lock Release | Dual-point, manual |
| Arms | 2-stage and 3-stage arms; symmetric/asymmetric configurations |
| Motor | Approx. 3 HP, 220V single phase |
| Power Requirement | 220V AC, dedicated circuit recommended |
| Shipping Weight | Approx. 1,300–1,800 lbs (varies by packaging) |
| Included Accessories | Power unit, floor anchors, truck adapters |
All specifications are approximate and may vary slightly by production run. Always refer to the current manufacturer manual for final dimensions, clearances, and installation requirements.
Safety & Installation Guidance
For any two-post lift, correct installation and use are critical. Dunfer strongly recommends:
- Professional installation by qualified lift installers.
- Verifying concrete thickness, strength, and condition meets manufacturer requirements before drilling.
- Confirming ceiling height and vehicle dimensions, including roof racks and antennas, before purchase.
- Following all procedures in the official installation and operating manuals.
- Using proper lifting points, wheel chocks, and shop safety equipment at all times.
Why Order the NT9FP from Dunfer?
- Lift-focused store: Dunfer specializes in vehicle lifts and garage equipment for US garages and shops.
- Secure checkout: pay confidently with PayPal.
- Safety-first product information to help you match the right lift to your space and vehicles.
- Questions about fitment or installation? Contact us at
contact@dunfer.com or +1 332-278-8241.
If you’re looking for a 9,000 lb two-post lift that works in lower garages and still delivers full undercar access, the Triumph NT9FP Floor-Plate Auto Lift from Dunfer is a strong, flexible solution for your home shop or light commercial bay.
